Golf Cart Lithium Battery Pack
Maximise your golf cart’s range and performance with unmatched efficiency:
- Plug-and-play and require zero maintenance
- Solutions for two-wheelers, three-wheelers, E-Rickshaws, golf carts, and E-Boats
- Intelligent BMS ensures battery safety and maximizes battery life cycles
- Outperform and outlast lead-acid batteries
Models: 48V & 72V, 100AH – 240AH
Features
These features collectively make Golf Cart lithium battery packs a reliable, efficient, and sustainable power source for golf cart enhancing their overall performance and usability
01
Value for Money
02
Shock Absorption
03
Light Weight
04
Maintenance Free
05
Wide Operating Temperature
Applications

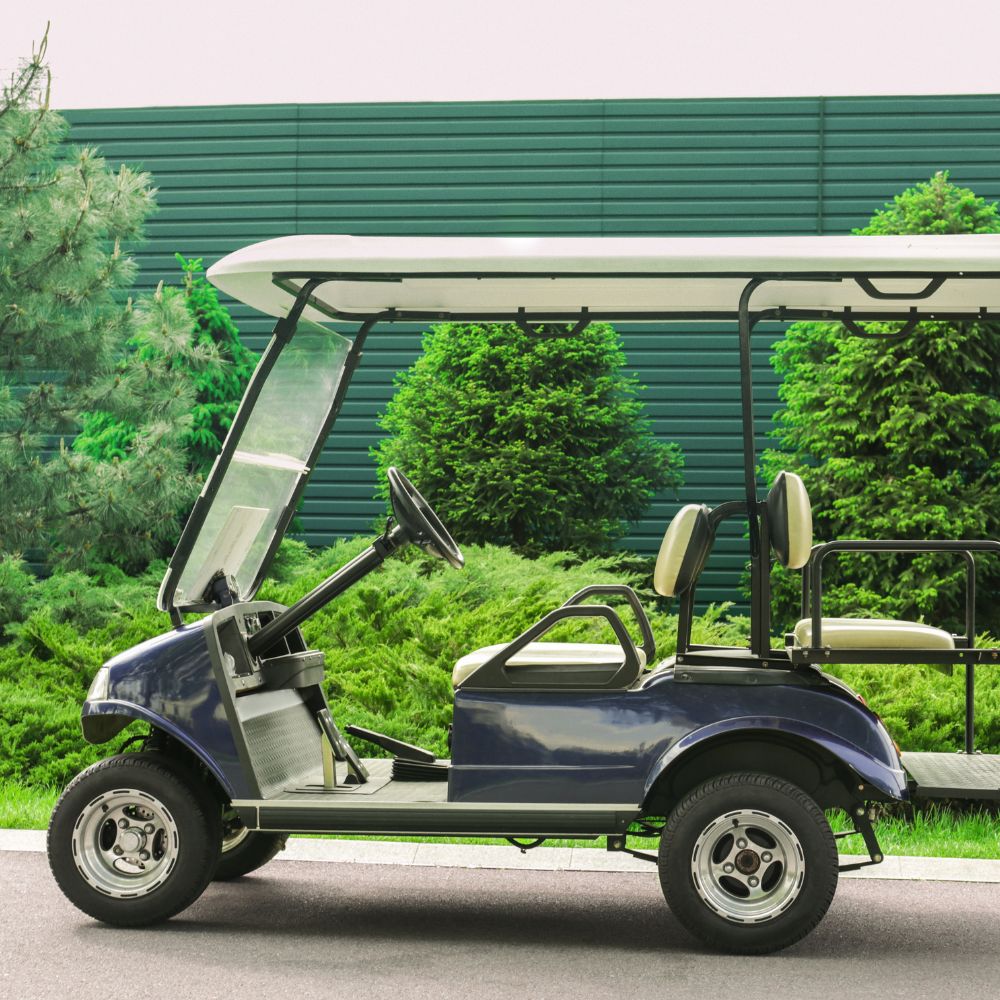

Golf Carts
Battery Operated Mini Car
Applications - EV
The Smarter Choice For Modern EV – Golf Cart
Lithium batteries give golf carts
quicker acceleration, longer driving range, and hassle-free charging, while lead-acid batteries add excess weight, require frequent maintenance, and need regular replacements. This difference makes lithium the smarter, more reliable power choice for golf carts.
Why Lithium Powers EV-Golf Cart Better?
Lower Lifetime
Cost
Lithium batteries last 4–5 times longer and require zero maintenance
Superior Performance & Efficiency
Lithium delivers consistent power, faster charging, and higher usable capacity
Nominal Voltage
48.1V
Cycle Life
1500 - 2000 cycle @ 80% DOD
Core Applications
Golf Cart – Buggy
E-Ambulance
Golf Cart - Bus
E-Cargo Vehicles
E-Utility Vehicles
Go Kart
| Rated Capacity (Ah) | 100Ah | 120Ah | 200Ah | 240Ah | 300Ah |
|---|---|---|---|---|---|
| Cell Chemistry | NMC | NMC | NMC | NMC | NMC |
| Charge Cut-off Voltage (V) | 54.6V | 54.6V | 54.6V | 54.6V | 54.6V |
| Discharge Cut-off Voltage (V) | 39V | 39V | 39V | 39V | 39V |
| Recommended Charge C-rate | Up to 0.5C | Up to 0.5C | Up to 0.5C | Up to 0.5C | Up to 0.5C |
| Recommended Discharge C-rate | Up to 1C | Up to 1C | Up to 1C | Up to 1C | Up to 1C |
| Operating Temperature (°C) | 0°C to 55°C | 0°C to 55°C | 0°C to 55°C | 0°C to 55°C | 0°C to 55°C |
| Cell Balancing | Passive | Passive | Passive | Passive | Passive |
| Voltage Level Protection | Enabled | Enabled | Enabled | Enabled | Enabled |
| Over Current Protection | Enabled | Enabled | Enabled | Enabled | Enabled |
| Temperature Protection | Enabled | Enabled | Enabled | Enabled | Enabled |
| Short Circuit Protection | Enabled | Enabled | Enabled | Enabled | Enabled |
| Dimension (mm) | L835 × W245 × H245 | L835 × W245 × H245 | L750 × W270 × H310 | L875 × W240 × H310 | L955 × W510 × H205 |
|---|---|---|---|---|---|
| Enclosure Material | CRCA / Aluminium | CRCA / Aluminium | CRCA / Aluminium | CRCA / Aluminium | CRCA / Aluminium |
| Weight (+5kg) | 38kg | 40kg | 52kg | 70kg | 110kg |
| Display | Enabled | Enabled | Enabled | Enabled | Enabled |
| Mobile App Monitoring | Enabled | Enabled | Enabled | Enabled | Enabled |
| Communication Interfaces | Bluetooth / CAN | Bluetooth / CAN | Bluetooth / CAN | Bluetooth / CAN | Bluetooth / CAN |
| Protection Level | IP67 | IP67 | IP67 | IP67 | IP67 |
|---|---|---|---|---|---|
| Mounting | Bolt on / Fixed | Bolt on / Fixed | Bolt on / Fixed | Bolt on / Fixed | Bolt on / Fixed |
| ON/OFF Switch | On Demand | On Demand | On Demand | On Demand | On Demand |
| MCB | On Demand | On Demand | On Demand | On Demand | On Demand |
| Fire Suppressor | On Demand | On Demand | On Demand | On Demand | On Demand |
| IoT | On Demand | On Demand | On Demand | On Demand | On Demand |
WARRANTY – 3 TO 5 YEARS
*Terms and conditions apply
*Terms and conditions apply
Nominal Voltage
51.2V
Cycle Life
2000 - 3000 cycles @ 80% DOD
Core Applications
Golf Cart – Buggy
E-Ambulance
Golf Cart - Bus
E-Cargo Vehicles
E-Utility Vehicles
Go Kart
| Rated Capacity (Ah) | 100Ah | 150Ah | 230Ah | 304Ah |
|---|---|---|---|---|
| Cell Chemistry | LFP | LFP | LFP | LFP |
| Charge Cut-off Voltage (V) | 58.4V | 58.4V | 58.4V | 58.4V |
| Discharge Cut-off Voltage (V) | 43.2V | 43.2V | 43.2V | 43.2V |
| Recommended Charge C-rate | Up to 0.5C | Up to 0.5C | Up to 0.5C | Up to 0.5C |
| Recommended Discharge C-rate | Up to 1C | Up to 1C | Up to 1C | Up to 1C |
| Operating Temperature (°C) | 0°C to 55°C | 0°C to 55°C | 0°C to 55°C | 0°C to 55°C |
| Cell Balancing | Passive | Passive | Passive | Passive |
| Voltage Level Protection | Enabled | Enabled | Enabled | Enabled |
| Over Current Protection | Enabled | Enabled | Enabled | Enabled |
| Temperature Protection | Enabled | Enabled | Enabled | Enabled |
| Short Circuit Protection | Enabled | Enabled | Enabled | Enabled |
| Dimension (mm) | L590 × W280 × H280 | L835 × W255 × H260 | L835 × W255 × H260 | L835 × W255 × H260 |
|---|---|---|---|---|
| Enclosure Material | CRCA / Aluminium | CRCA / Aluminium | CRCA / Aluminium | CRCA / Aluminium |
| Weight (+5kg) | 38kg | 40kg | 52kg | 70kg |
| Display | Enabled | Enabled | Enabled | Enabled |
| Mobile App Monitoring | Enabled | Enabled | Enabled | Enabled |
| Communication Interfaces | Bluetooth / CAN | Bluetooth / CAN | Bluetooth / CAN | Bluetooth / CAN |
| Protection Level | IP67 | IP67 | IP67 | IP67 |
|---|---|---|---|---|
| Mounting | Bolt on / Fixed | Bolt on / Fixed | Bolt on / Fixed | Bolt on / Fixed |
| ON/OFF Switch | On Demand | On Demand | On Demand | On Demand |
| MCB | On Demand | On Demand | On Demand | On Demand |
| Fire Suppressor | On Demand | On Demand | On Demand | On Demand |
| IoT | On Demand | On Demand | On Demand | On Demand |
WARRANTY – 3 TO 5 YEARS
*Terms and conditions apply
*Terms and conditions apply
